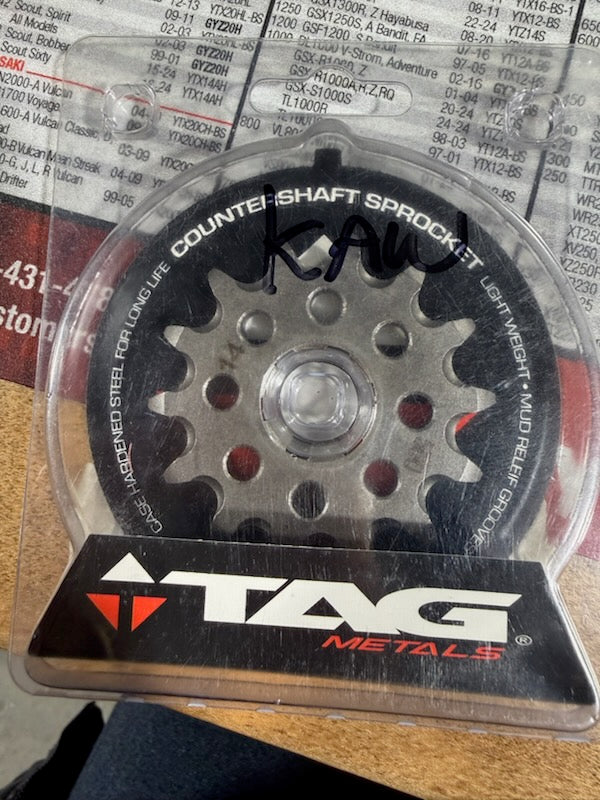

TAG Metals Race Front Countershaft Sprocket (14-Tooth / 520 Pitch) — Part #TCS-536-14 (13144-0042)
$5.00
Sale price
$5.00
Regular price
$39.99
Skip to product information
TAG Metals Race Front Countershaft Sprocket (14-Tooth / 520 Pitch) — Part #TCS-536-14 (13144-0042)
$5.00
Sale price
$5.00
Regular price
$39.99
Product Overview
The TAG Metals Race Front Countershaft Sprocket (Part #TCS-536-14) is a premium, competition-grade drivetrain component built by TAG Metals for high-performance supersport motorcycles and racing ATVs. This 14-tooth drive gear anchors your vehicle's primary drive system, transferring raw engine power from the transmission countershaft directly to the rear wheel assembly via an industry-standard 520-pitch drive chain. Designed to serve as an exact OEM replacement or custom gearing option, it optimizes rotational mass and structural response under demanding street, track, and trail conditions. [1, 2]
Technical Specifications
- Manufacturer: TAG Metals
- Part Number: TCS-536-14 (Industry cross-ref dimensions: JTF1536.14)
- Product Type: Drive Train / Front Countershaft Engine Sprocket
- Material: High-grade, case-hardened nickel-chromoly steel matrix for superior hardness and impact resistance.
- Finish: Matte raw treated steel with protective anti-corrosion oil coatings.
- Size Profile: 14-Tooth (14T) configuration mapped specifically for a 520 final drive chain pitch.
- Spline Geometry: Precision CNC-machined 13-spline configuration (21.7mm inner / 25.0mm outer diameter, 7.5mm total thickness).
- Fitment Type: Direct OEM replacement slider matching original manufacturer spline dimensions. [1, 2, 3, 4, 5]
Key Features & Benefits
- Case-Hardened Core: Advanced thermal processing hardens the gear tooth boundaries, eliminating premature tooth breakdown or pocket deformation under aggressive acceleration. [1, 2]
- Integrated Mud-Relief Grooves: Specially machined self-cleaning relief trenches at the base of the tooth faces actively fling away mud, track grime, and debris to extend chain and gear lifecycle efficiency. [1, 2]
- Micro-Tolerance CNC Machining: Broached to hyper-exact factory tolerances to eliminate countershaft micro-chatter, ensuring absolute rotational stability and defending transmission output shaft seals from stress leaks. [1, 2]
- Lightened Race Architecture: Features engineered weight-reduction face pockets to lower unsprung rotating mass, boosting immediate engine throttle responsiveness. [1, 2]
Confirmed Motorcycle & ATV Fitment
This specific spline architecture and offset profile configured for a 520 chain pitch is a confirmed direct fit for the following Kawasaki supersport and off-road platforms: [1, 2]
| Manufacturer | Model | Compatible Model Years | Chain Pitch / Teeth |
|---|---|---|---|
| Kawasaki | ZX-6R Ninja (600cc) | 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 | 520 Pitch / 14-Tooth |
| Kawasaki | ZX-6R Ninja (636cc / ABS / KRT) | 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 | 520 Pitch / 14-Tooth |
| Kawasaki | KFX450R (Race ATV) | 2008, 2009, 2010, 2011, 2012, 2013, 2014 | 520 Pitch / 14-Tooth |
